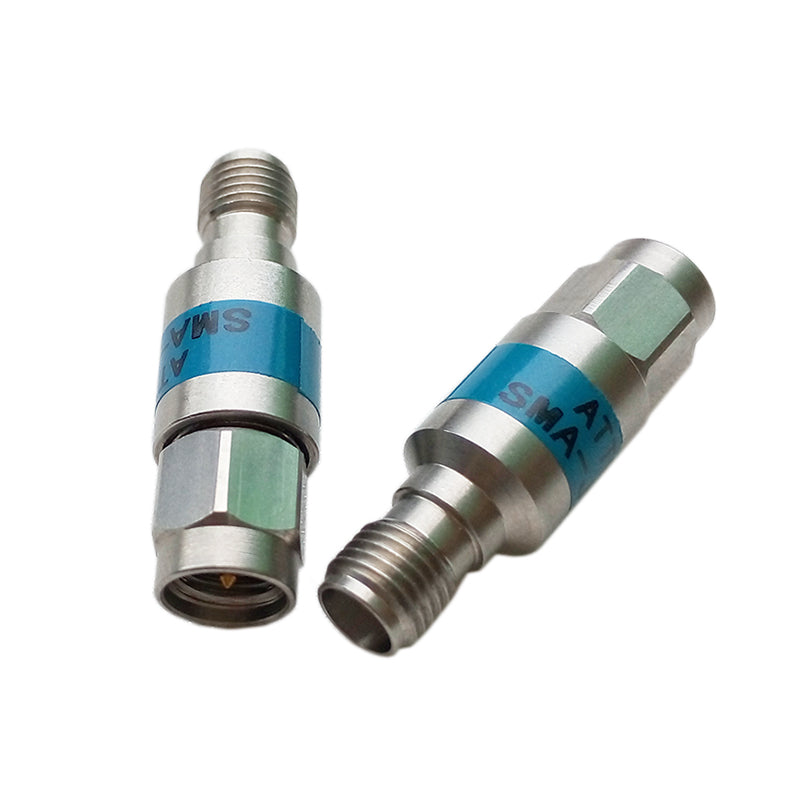

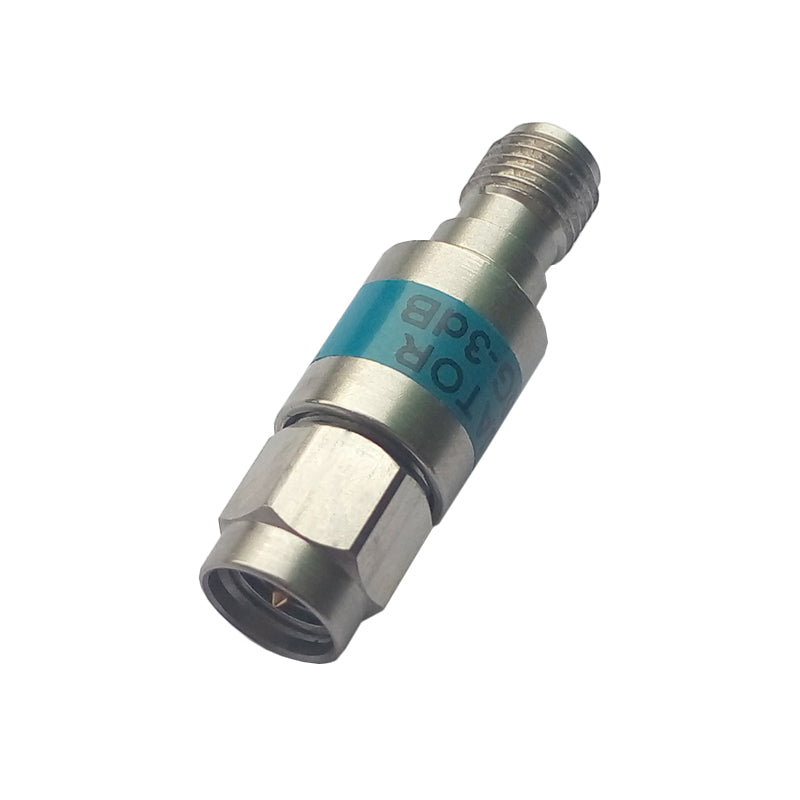

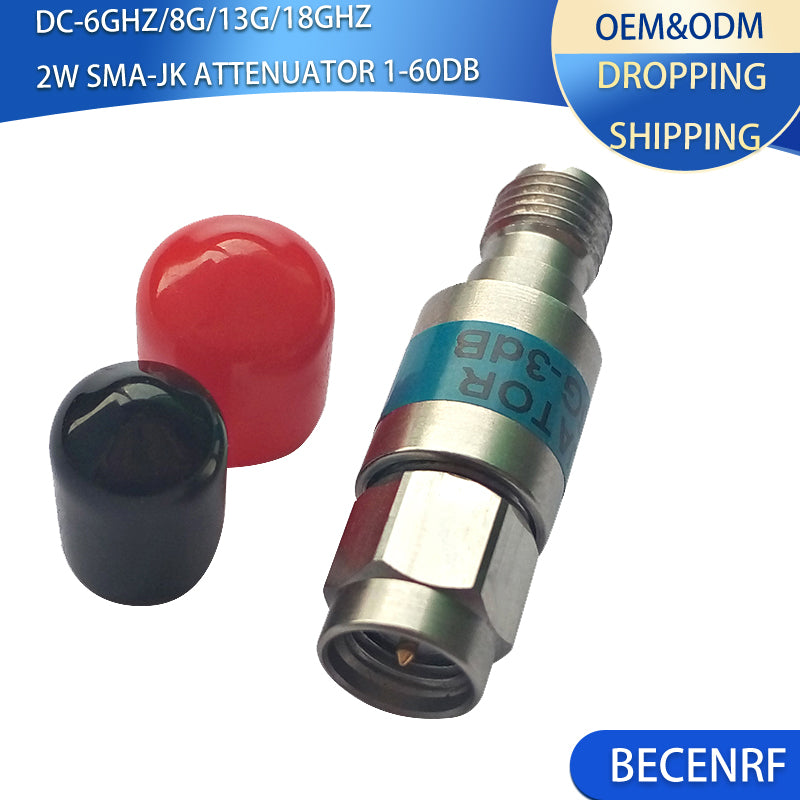

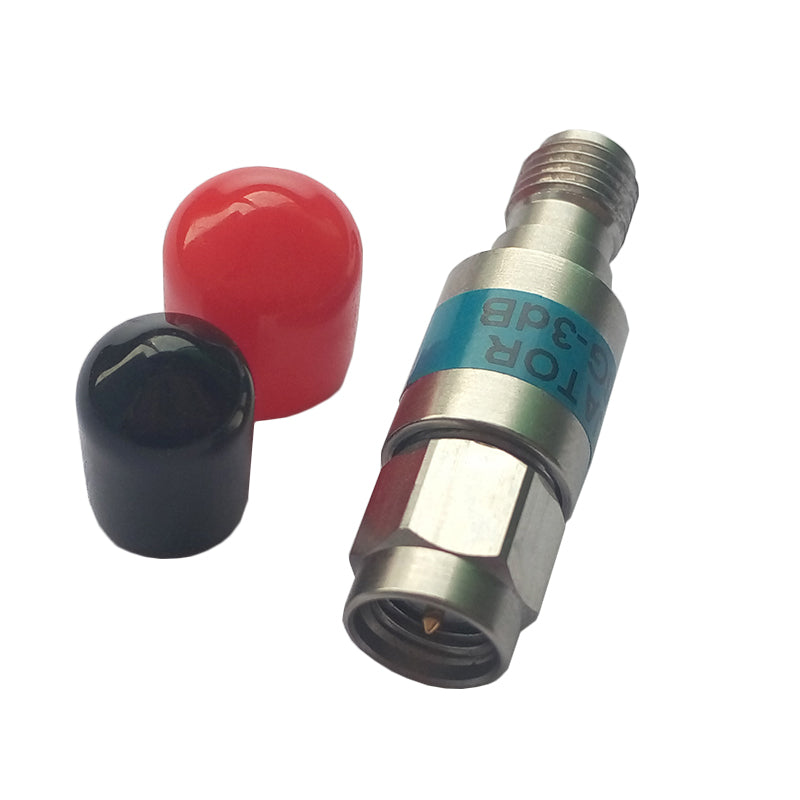

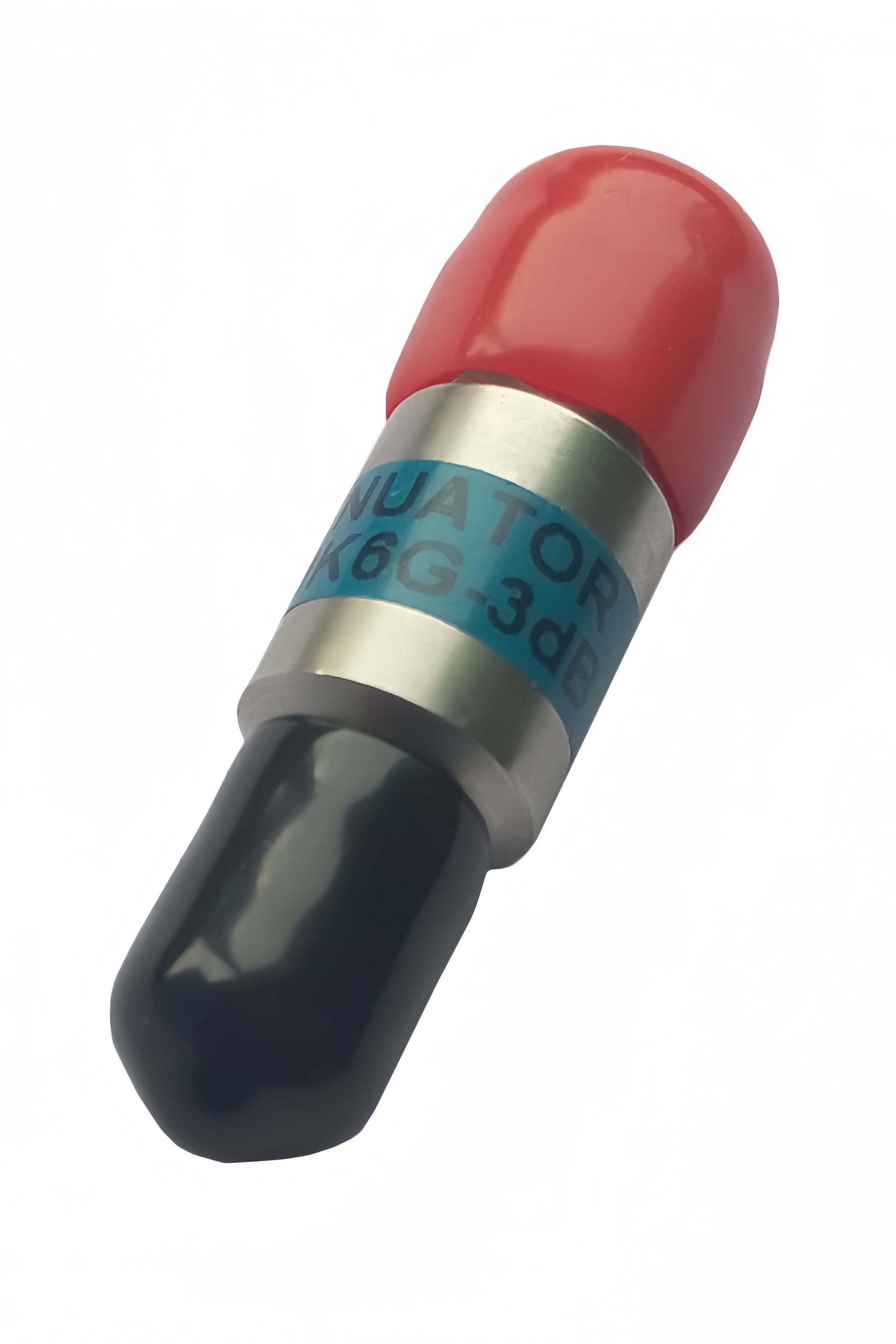

Stainless steel 2W SMA-JK RF Fixed Attenuator 6G/8G/13G/18G 1-60dB
Stainless steel 2W SMA-JK RF Fixed Attenuator 6G/8G/13G/18G 1-60dB
Couldn't load pickup availability
| Specification | Parameter |
|---|---|
| Model | BC-AT02-01 |
| Power | 2W sma attenuators |
| Connector | SMA-JK |
| Frequency Range | DC-6GHz / 8G/13G/18GHz |
| Attenuation | DC-6G: 1-60dB available, DC 8-18GHz, 1-40dB available
+/-0.5dB;30+/-1dB 40,50dB+/-1.5dB;60dB+/-1.8dB;(5-40dB,13G)+/-1.8dB;(10-40dB,18G)+/-1.8dB |
| VSWR (MAX) | 1.2:1 |
| Impendance | 50Ω |
| Temperature Range | -55°C to +125°C |

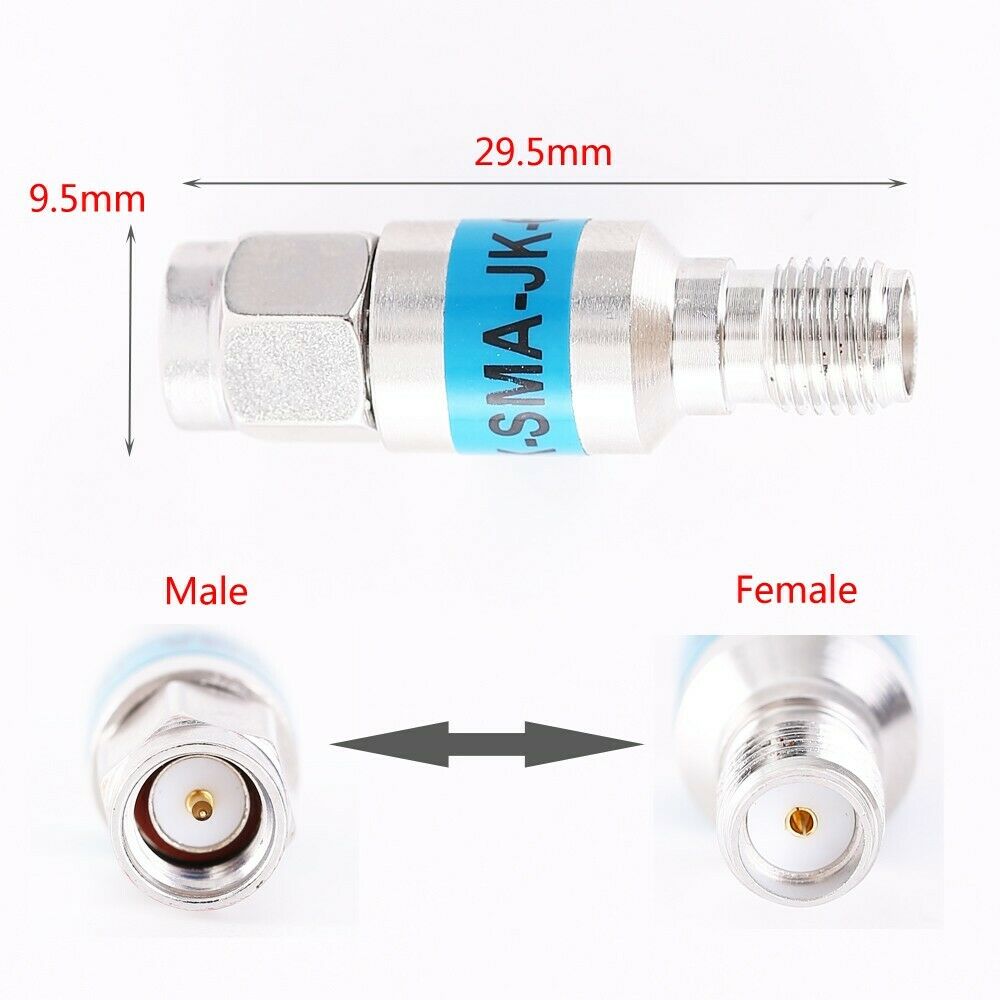

| Dimension | 30*9mm |
| Weight | 8g |
